TS7700 Grating Spectrophotometer

Handheld Grating Patented Spectrophotometer

Make the color difference clear, a high-precision spectrophotometer, for the objective measurement and description of the color of surface, in any light condition. TS7700 features a 1000 - line precision blazed grating for light splitting and a silicon photocell array detector with a large photosensitive area. This setup ensures high - speed, accurate, stable, and consistent measurements.


Key Highlights

  • Reliable，1000 line precision blazed grating

  • Optical resolution in the visible range is less than 10nm

  • Excellent repeatability (ΔEab ≤ 0.02) and inter - instrument error (ΔEab ≤ 0.15)

  • Dual - aperture options (φ8mm and φ4mm, with both flat and tip types)

  • D/8 (SCI/SCE) measurement structure, compliant with multiple international standards

  • Extensively used in plastic electronics, paint coatings, textile printing and dyeing, printing, automotive, medical, cosmetics, and food industries

TS7700 Grating Spectrophotometer Instructions Operating Manual TS7700 Grating Spectrophotometer PDF
This TS7700 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Achieving Reliable Color Measurement Results with 3nh

Start a new era of intelligent color measurement, Ts7x series are precision grating instruments with many applications that 3nh company has spent 3 years to design and is developed by 3nh independent intellectual property rights. The instrument adopts 1000 line precision blazed grating as the spectroscopic element, the silicon photocell array with large photosensitive area as the detector, the full spectrum led with high life as the light source, and the optical resolution is less than 10nm in the visible light range.

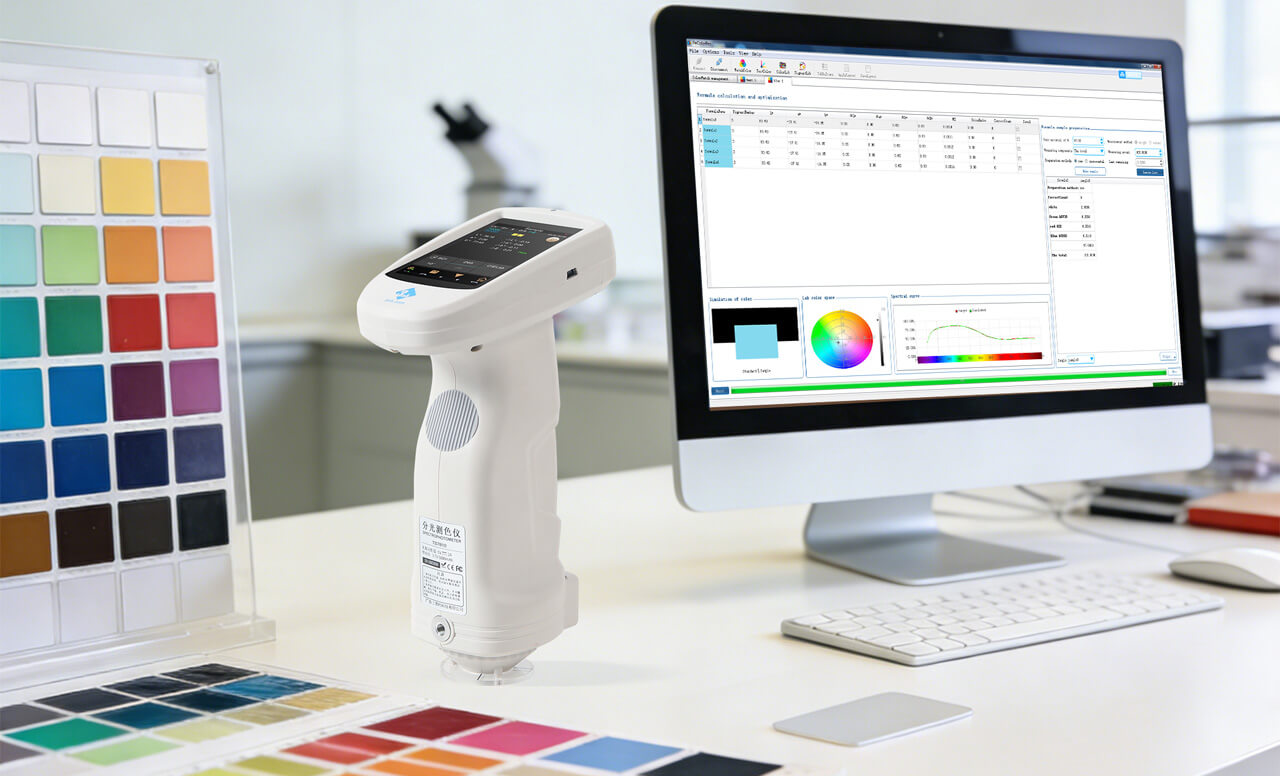

TS7700 spectrophotometer for color management

The top spectrophotometer in the industry, with world-class accuracy, is suitable for high-end measurement. High performance, high precision, and high stability. Under the condition of d/8 geometric optical illumination recommended by CIE, TS7700 grating spectrophotometer can accurately measure the SCI and SCE reflectance data of samples / fluorescent samples, and also can accurately measure and express various color difference formulas and color indexes in various color spaces. With spectrophotometer TS7700, it can easily realize the accurate transmission of color and can also be used as the detection equipment of accurate color matching system.

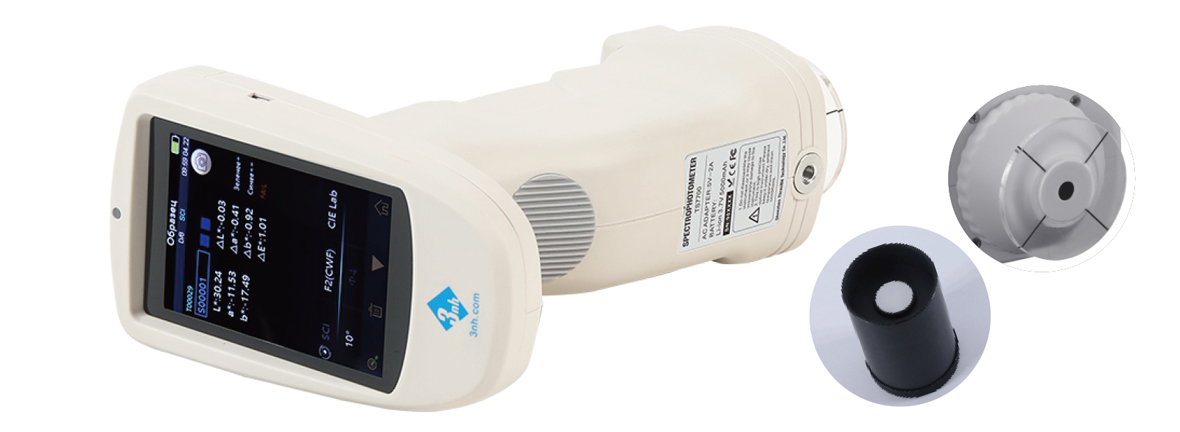

 TS7700_products_show

20+ Years of Professional Color Management – Color Difference Reduced by 98%

The 3nh professional colorimeter series accurately resolves color deviation issues in printing, coatings, textiles, industrial manufacturing and other industries, helping enterprises cut rework costs by 60%.

Get an Official Quote for 3nh

Main Applications for TS7700

Spectrophotometer TS7700 is also widely used in the color quality control of various products. TS7700 is equipped with high-end color management software, which is connected to the computer to realize more function expansion. The instrument has stable performance, accurate color measurement and powerful function. It is widely used in plastic electronics, paint and coating, textile printing and dyeing, printing paper, automobile, medical treatment, cosmetics and food industries, as well as scientific research institutions and laboratories etc.

ts7700 application in plastic electronics, paint and coating, textile printing and dyeing, printing paper, automobile



New Generation Colorimeter TS7700 Features:



Universal D/8 SCI/SCE Synthesis Technology

Adopting the internationally recognized D/8 (SCI/SCE) measurement structure to more objectively reflect the color itself and reduce the impact of surface texture on test results. conforming to CIE No.15, GB / T 3978, GB 2893, GB / T 18833, iso7724 / 1, ASTM e1164, din5033 teil7;

Contact our Application Solution Experts

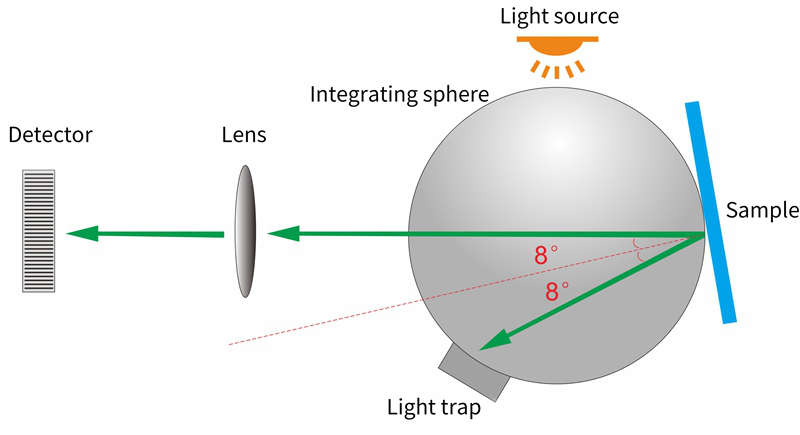

D8 SCI SCE synthesis technology structural diagram

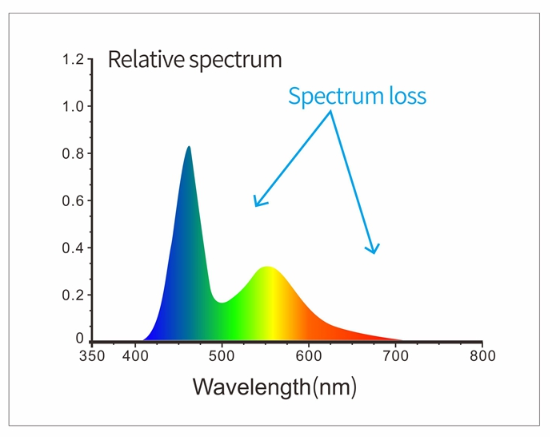

Adopting Full Band Balanced LED Light Source


  • No missing spectrum

  • White light is more stable

  • Further improve accuracy

  • Support UV measurement




Multiple Measurement Apertures Support Different Sample Measurements

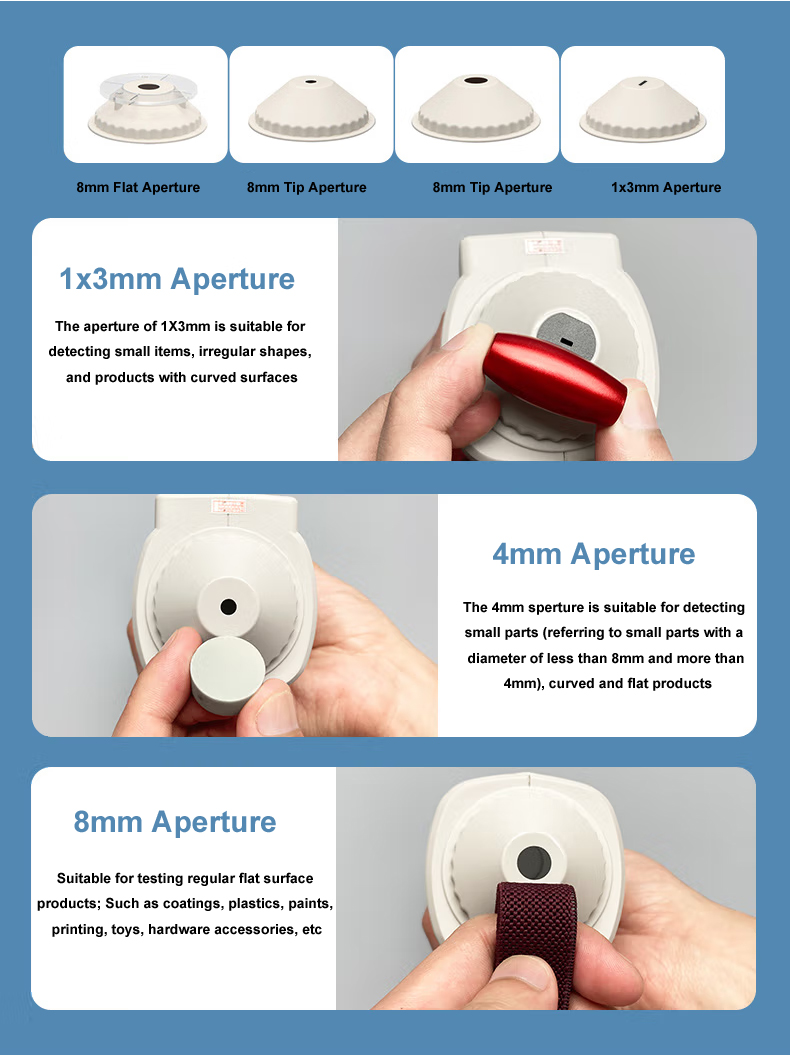

4 measurement apertures to meet the measurement needs of most special samples.

ts7700_measurement_aperture




SCI Measurement

SCI includes the specular reflection method and is generally used by manufacturers who study the inherent properties of colors themselves without caring about the glossiness of the sample surfaces to which the colors are attached, such as paint and coating factories, etc.

Learn more about the SCI Measurement

SCE Measurement

SCE refers to a method that excludes specular reflection. It is generally applicable to samples that are directly observed by humans and require measurement results to be very close to visual observation, such as home appliance casings, etc.

Learn more about the SCE Measurement

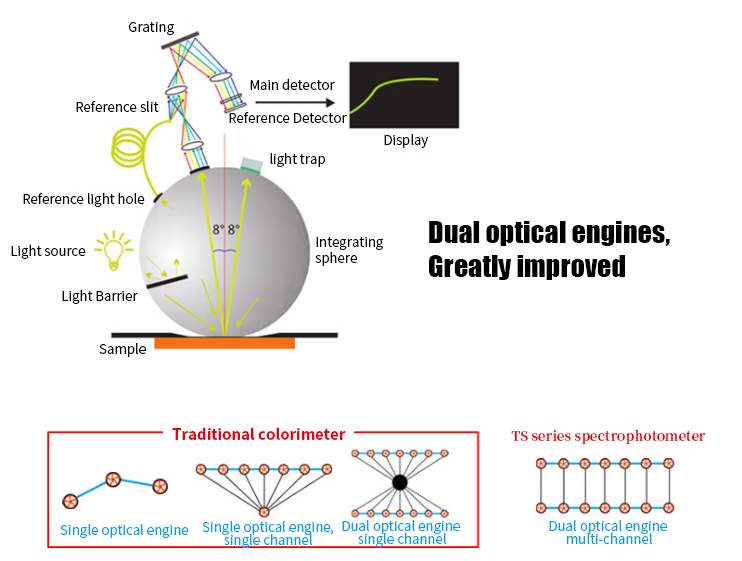

Dual light path system for more accurate color measurement


Dual optical path system, the optical resolution in the visible range is less than 10nm, which can measure the SCI and SCE spectrum of the sample at the same time;

TS7700 spectrophotometer Dual light path system structure

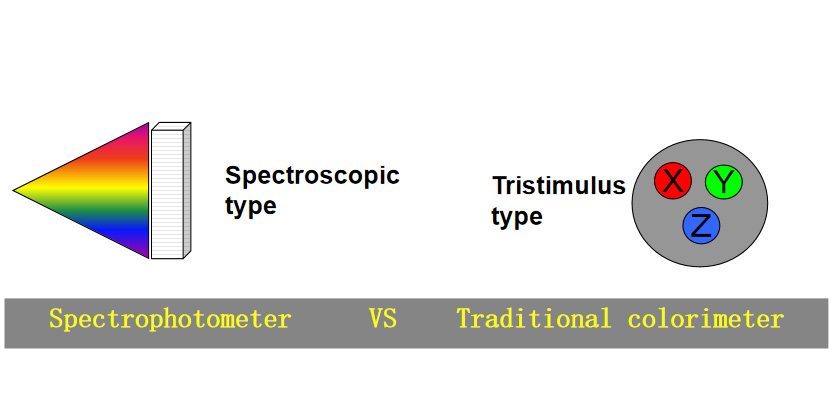

Grating spectroscopy technology


Significantly improved repeatability:
Spectral colorimeters have more spectral segmentation, higher resolution, greatly improved repeatability, and more accurate color measurement than colorimeters

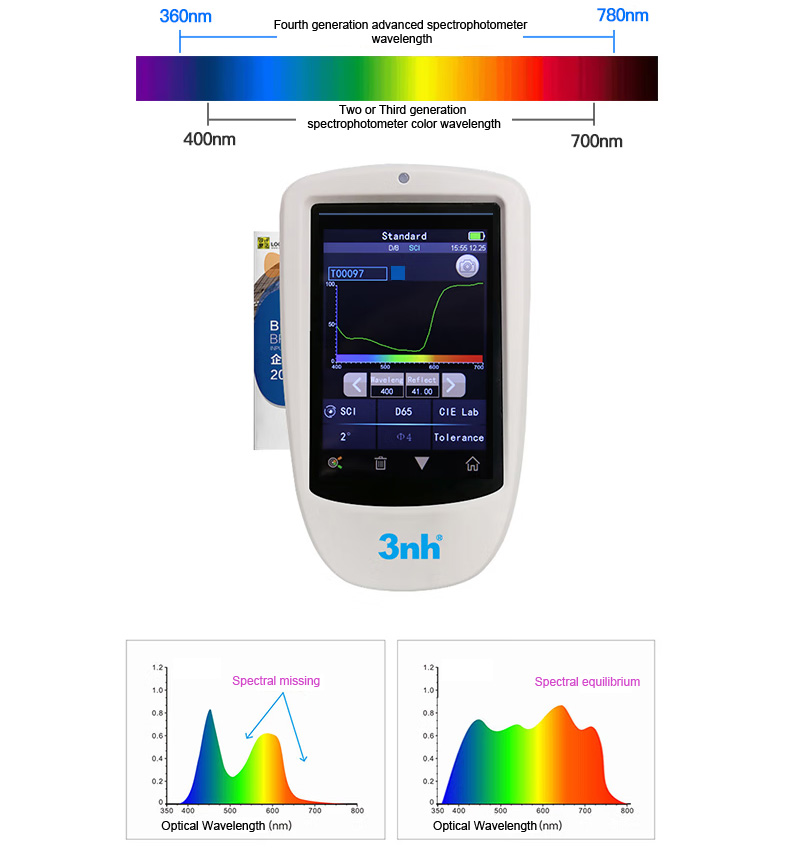

TS7700 fourth generation spectrophotometer

Accurate spectrum and lab data, used for color matching and accurate color transmission;

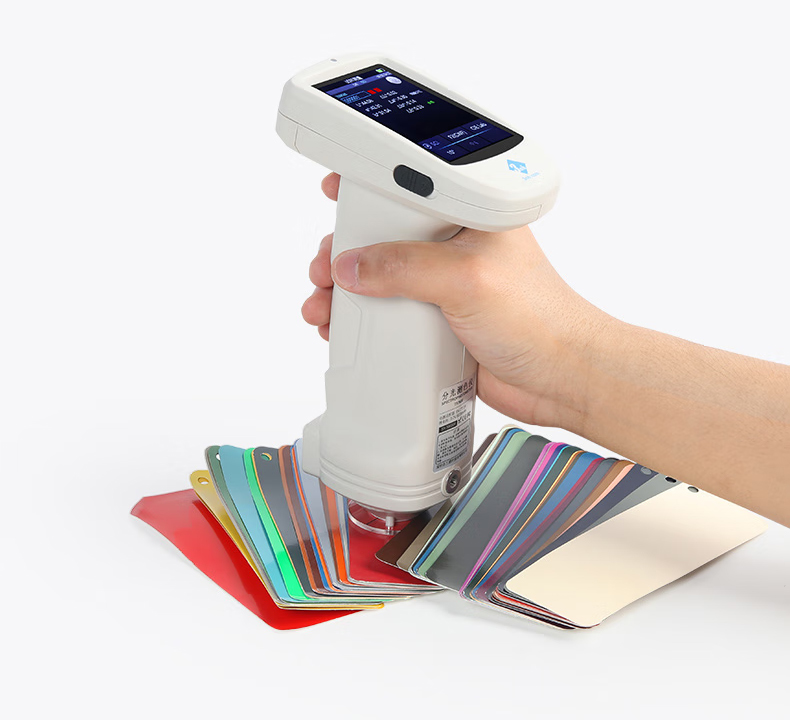

Ergonomically Designed ts7700，Comfortable hand feel

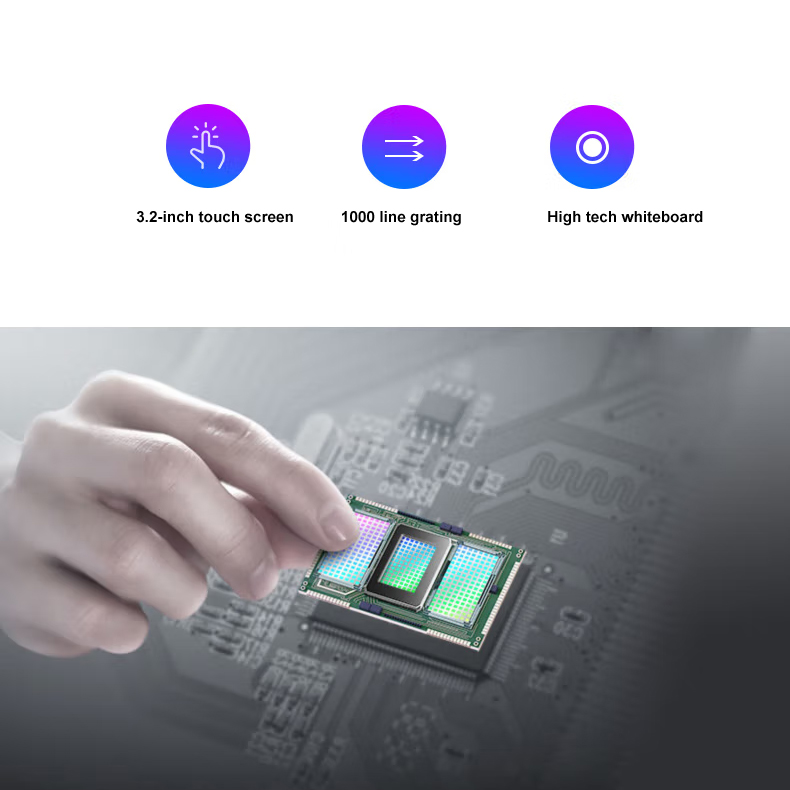

High hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, 1000 line blazed grating, silicon photocell array detector with large photosensitive area, etc;

High hardware configuration ts7700

USB / Bluetooth dual communication mode, wider adaptability;

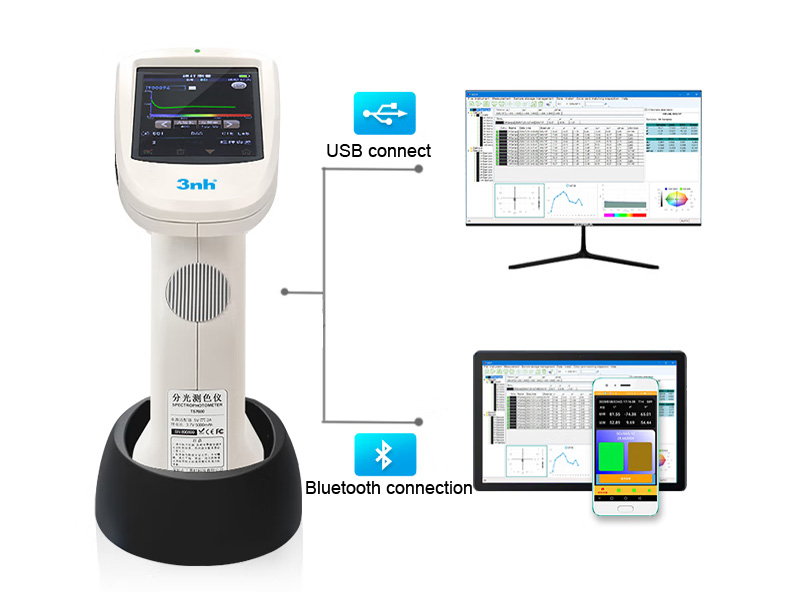

Multiple ways to connect computers, mobile phones, and tablets

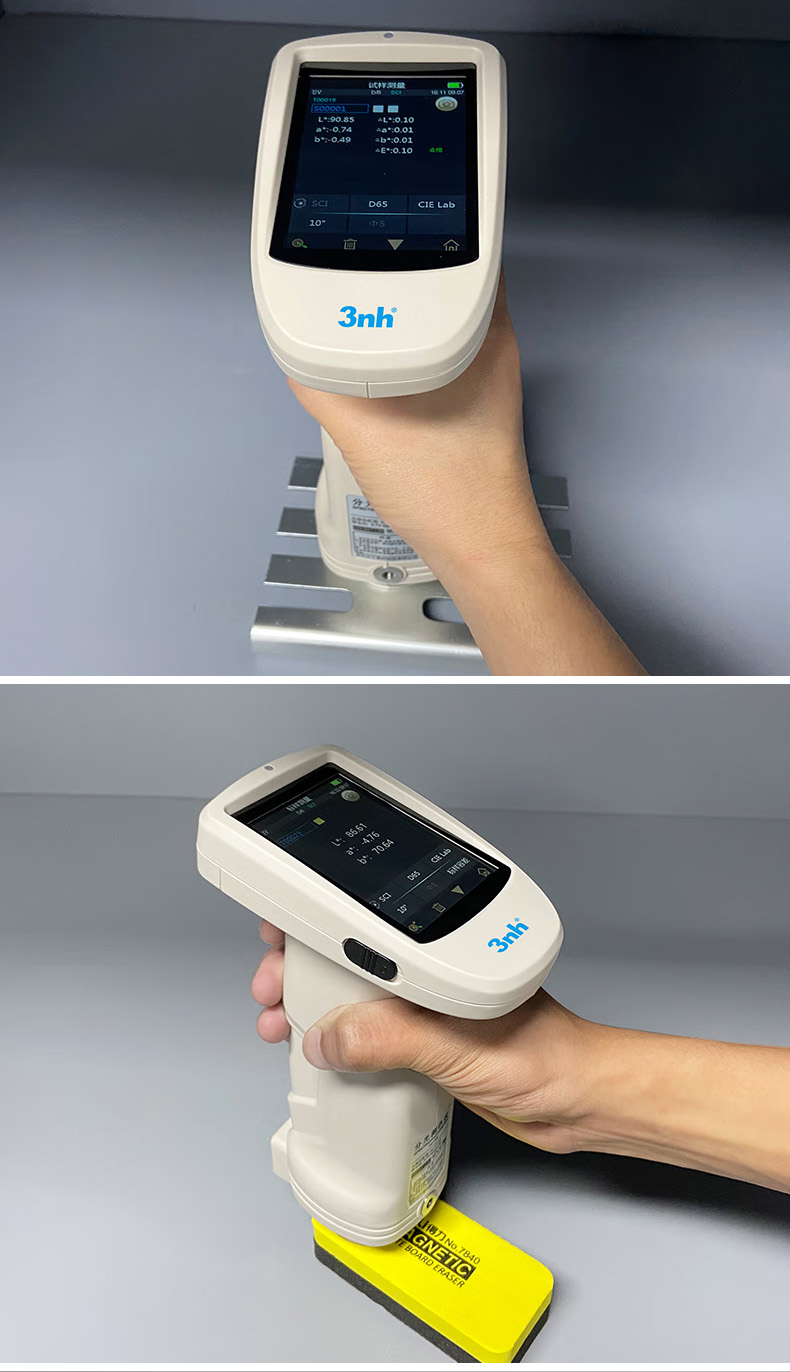

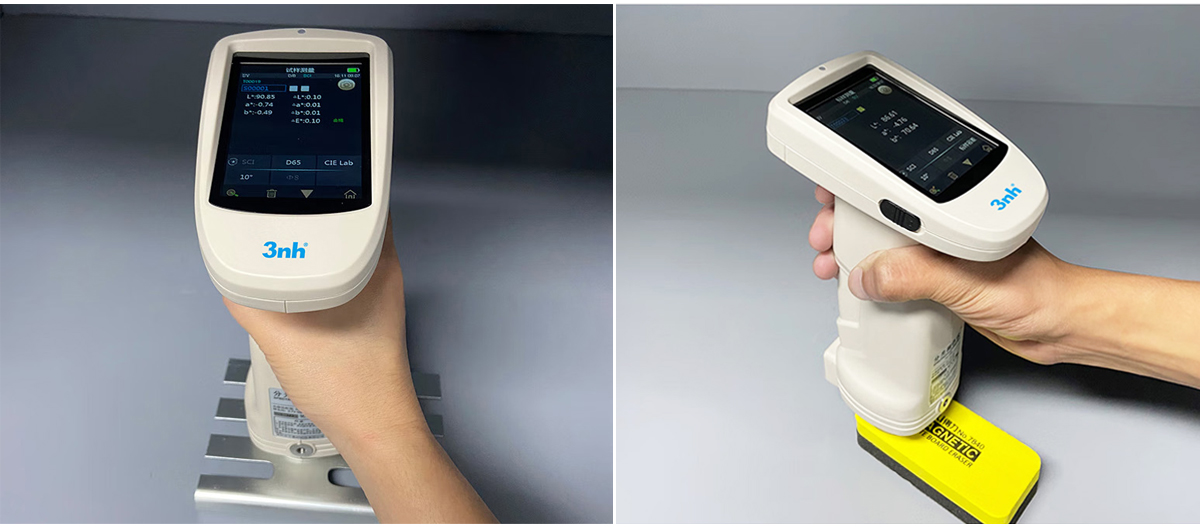

ts7700 measurement Various samples

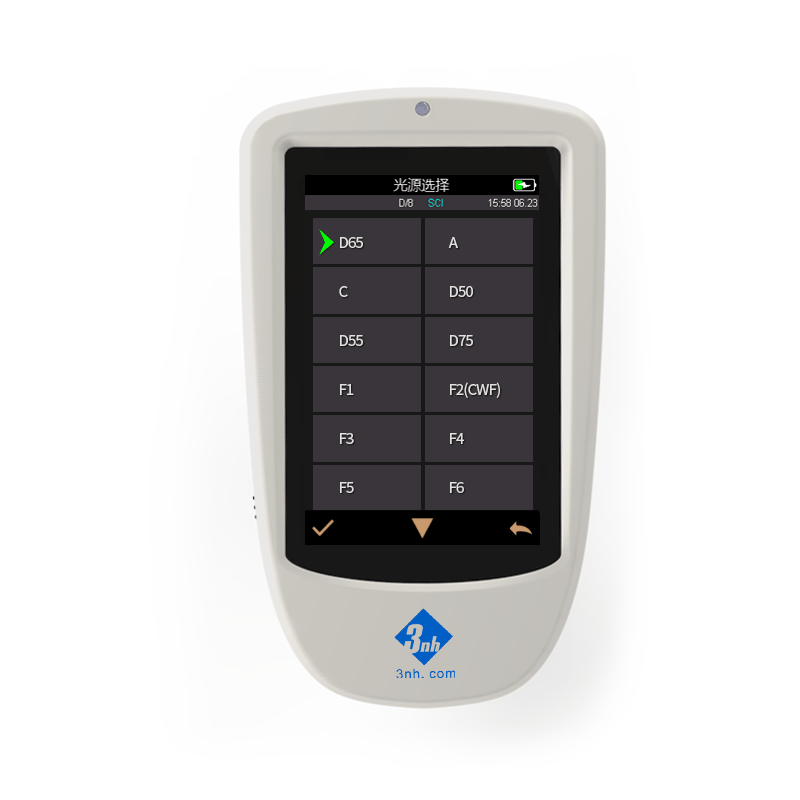

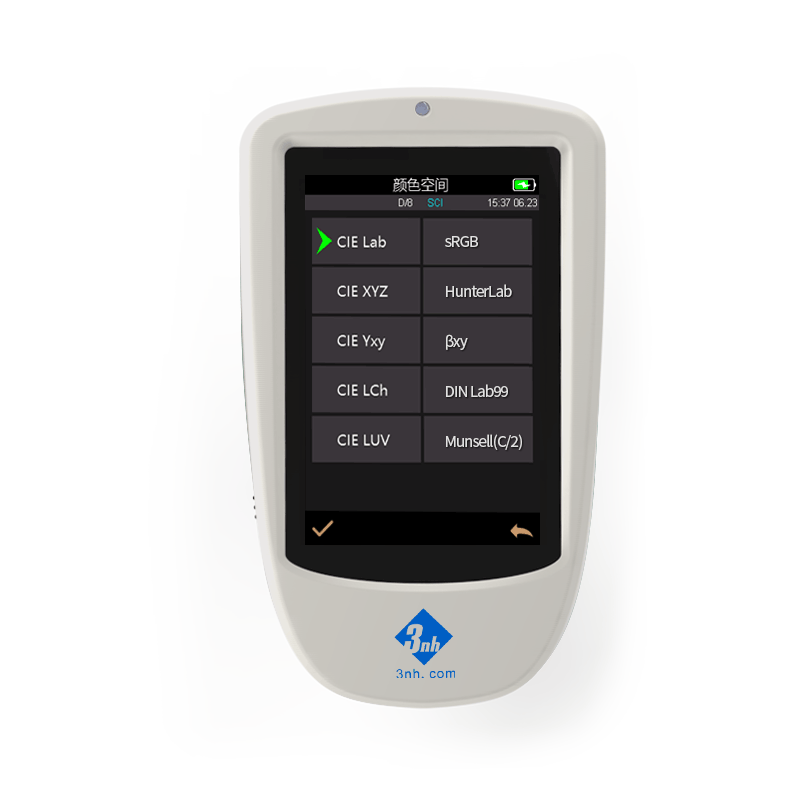

Multiple Color Measurement Spaces and Observation Light Sources

Provide CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, β xy, DIN Lab99 Munsell (C/2) color spaces, and D65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5, F6,F7(DLF),F8 ,F9,F10(TPL5),F11(TL84),F12(TL83/U30) Multiple observation light sources can meet the special measurement needs under different measurement conditions.

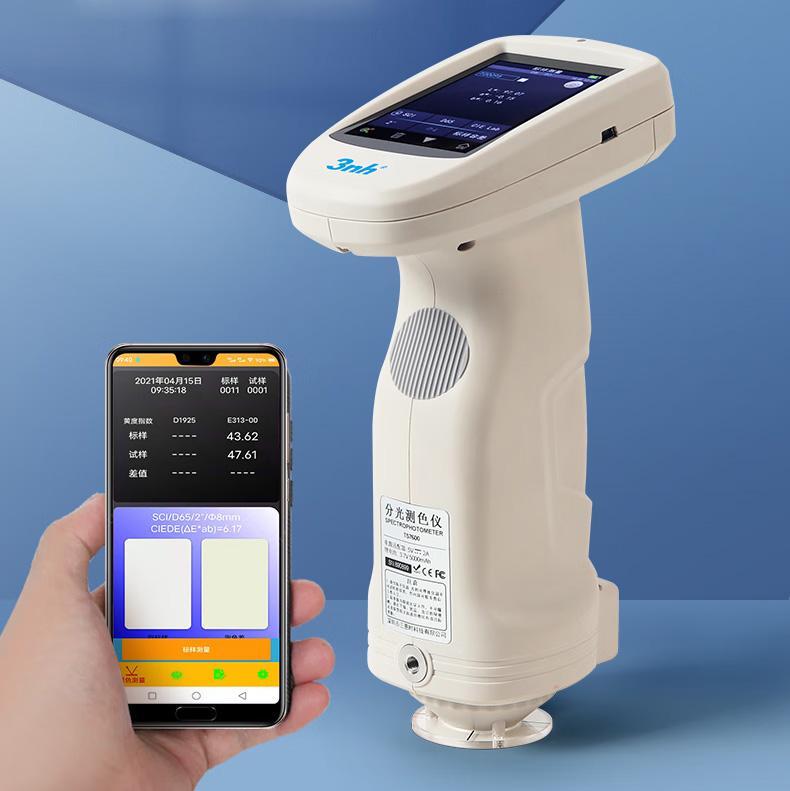

ts7700 Provide over 30 measurement parameters



Accurate_positioning_measurement_area

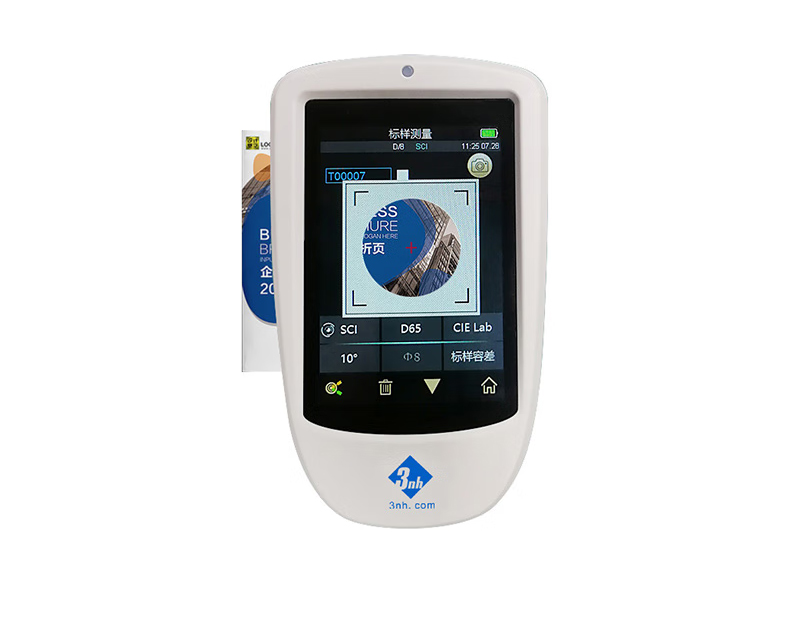

Camera locating position and Stabilizer cross measurement position;

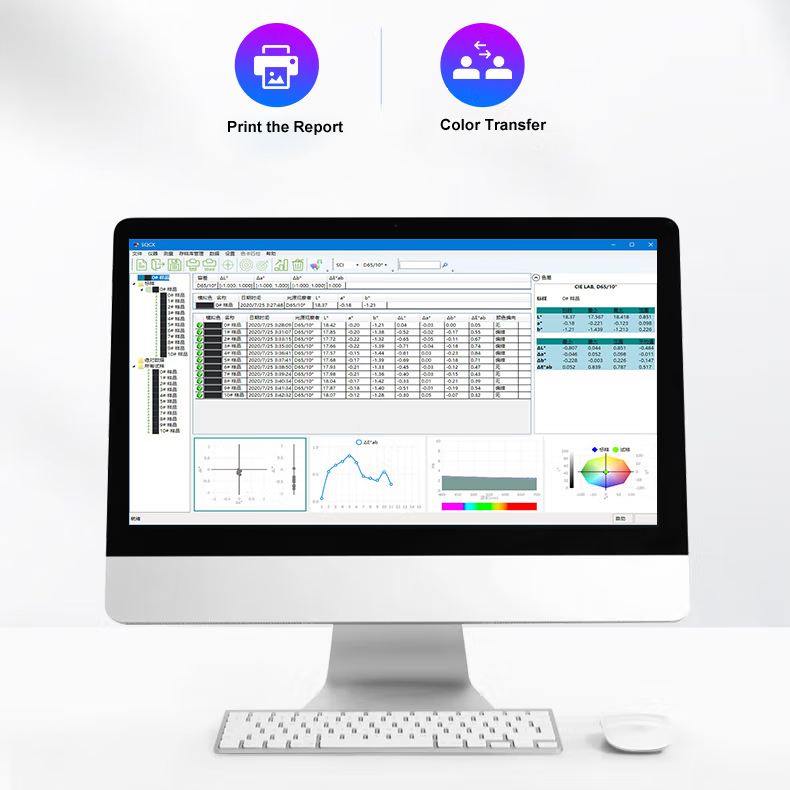

TS7700 PC software management

PC software has powerful function expansion;



Perfectly Outperforms All Other Similar Color Measuring Instruments

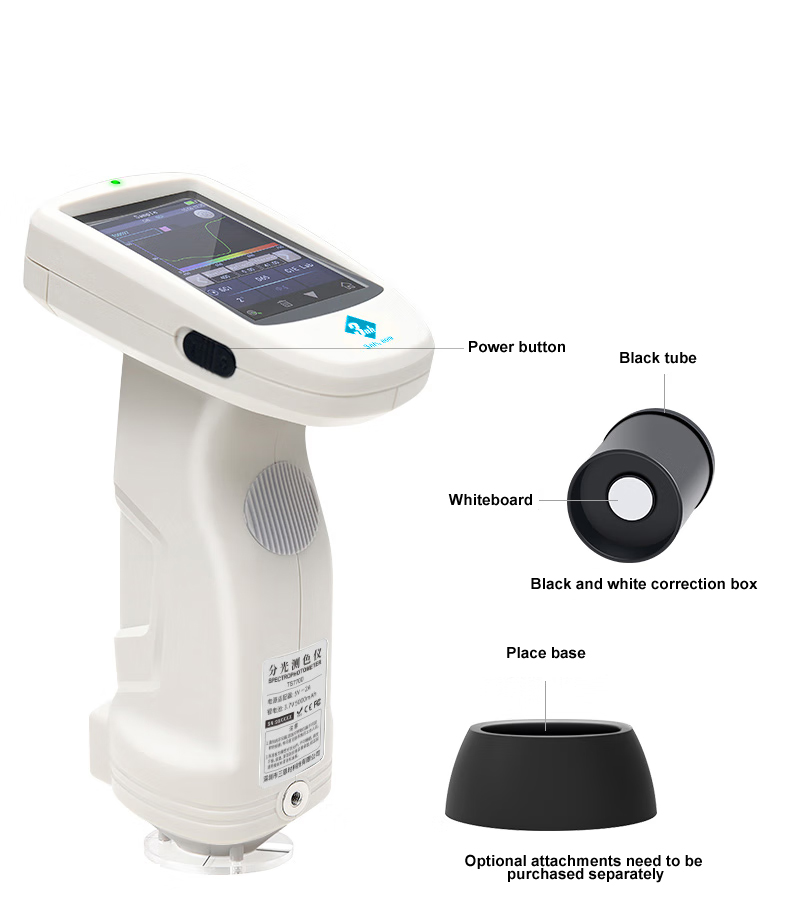

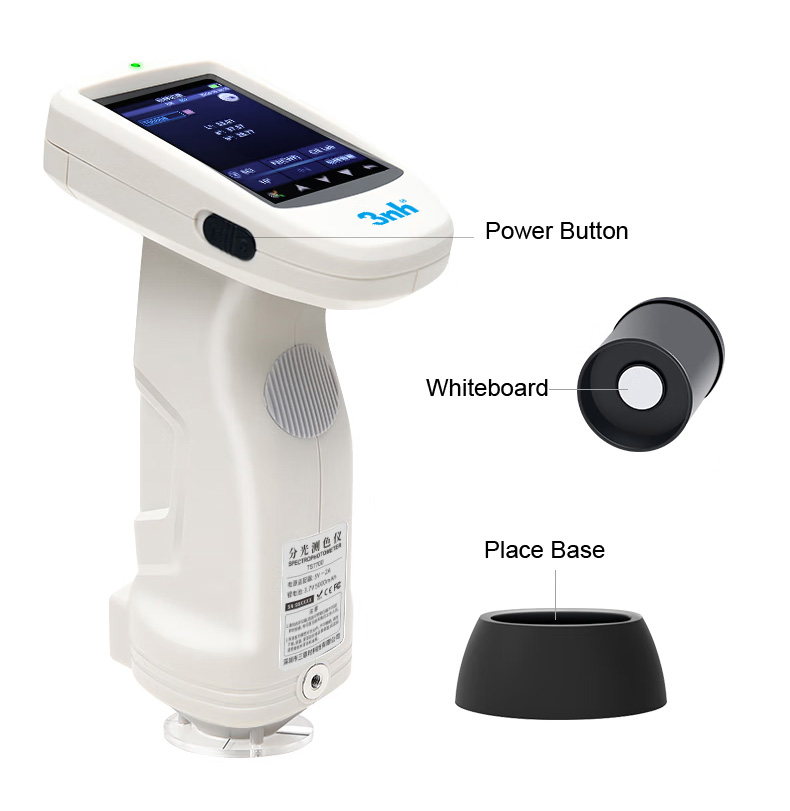

TS700 Instrument structure image

TS7700 Spectrophotometer Demonstrating Videos


Along with multifunctional apertures and supports for 40+ illuminants, color spaces, and SCI/SCE measurements, it is able to color match a variety of materials including plastics, textiles, coatings, and prints.

How to Use Spectrophotometer TS7700: how to start the instrument, calibration, measurement procedures for different sample types, how to switch between different color spaces and light sources, how to use the double locating (camera and illumination) and aperture functions, and how to export results with USB / Bluetooth.

Contact Experts to Learn More About the TS7700



Specification of Grating Color Spectrophotometer TS7700



ModelTS7700
Optical GeometryReflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
SCI (specular component included)/SCE (specular component excluded) ;      Include UV / excluded UV light source
Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristicdouble apertures for accurate color analysis and transmission in laboratory
It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement.
Integrating Sphere SizeΦ40mm
Light SourceCombined full spectrum LED light source, UV light source
Spectrophotometric ModeFlat Grating
SensorSilicon photodiode array (double row 40 groups)
Wavelength Range400~700nm
Wavelength Interval10nm
Semiband Width10nm
Measured Reflectance Range0-200%
Measuring ApertureMAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm
Specular ComponentSCI&SCE
Color SpaceCIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
Color Difference FormulaΔE*ab,ΔE*uv,ΔE*94 ,ΔE*cmc(2:1),ΔE*cmc(1:1) ,ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric IndexSpectrum Reflectance Rate, WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBergerStensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73) Metamerism Index Mt， Staining Fastness, Color Fastness, Strength (dye strength, tinting strength), Opacity 8-degree Gloss, 555 Index，Blackness（My,dM）, Color Density CMYK(A,T,E,M), Tint(ASTM E313-00)，Munsell（Some functions are realized through the computer）
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF, ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, Light source can be customized(a total of 41 kinds of light sources, some of which are realized through the host computer/APP)
Displayed DataSpectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring TimeAbout 1.5s (Measure SCI & SCE about 3.2s)
RepeatabilitySpectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)
Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument ErrorMAV/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Measurement ModeSingle Measurement, Average Measurement(2-99times)
Locating MethodCamera Locating,stabilizer cross position
DimensionL*W*H=129X76X217mm
WeightApprox 600g
Battery3.7V,5000mAh Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span5 years, more than 3 million times measurements
Displayed Data3.5-inch TFT color LCD, Capacitive Touch Screen
Data PortUSB, Bluetooth 5.0
Data StorageStandard 1000 Pcs, Sample 30000 Pcs
LanguageSimplified Chinese, English, traditional Chinese,Russian
Operating Environment0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)

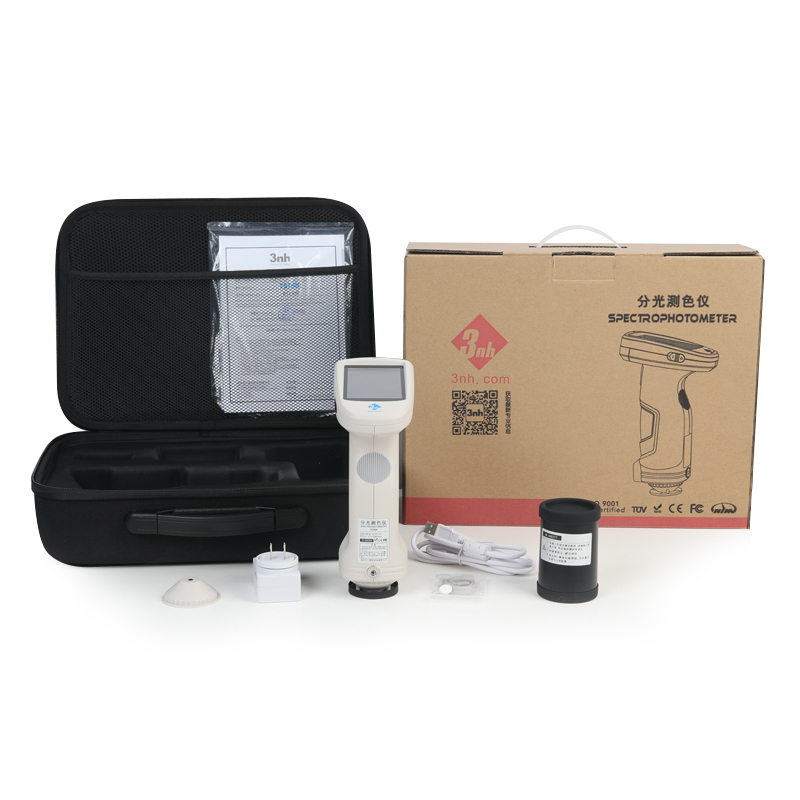

Standard AccessoryPower Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture
Optional AccessoryMicro Printer, Powder Test Box
NotesThe specifications are subject to change without notice.



12 Quality Inspection Processes

With 12 rigorous quality inspection processes in place, we ensure a high yield rate of up to 98% for processed precision Measurement Instruments.

DFM Analysis
DFM Analysis
Dimensional Tolerance
Dimensional Tolerance
Material Testing
Material Testing
CNC Machining
CNC Machining
FQC Detection
FQC Detection
SPC / CPK
SPC / CPK
Problem Found
Problem Found
Problem Solving
Problem Solving
OQC Detection
OQC Detection
Surface Treatment
Surface Treatment
Full Inspection
Package
Package

Our Valued Clients

  • vogels logo vector
  • philips
  • Clients gsk logo
  • Client mohani logo
  • orif Client logo
  • 3nh customer bridgestone
  • maruti suzuki logo
  • customer bell logo

FAQs About TS7700 Portable Spectrophotometers

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

At most of time, we have Spectrophotometer stock in the factory. Generally it is 1-3 working days after the payment confirmed. After shipped, we will email you the tracking number. You can check the shipping status of your order on the website. If you are in urgent need, we can consider making special arrangement for you.

Colorimeters or spectrophotometers are used to measure liquid color. They measure light coming through or reflecting off the liquid. Readings can be reported as Lab*, RGB, or absorbance units. So that objective color analysis can be used to control quality, or to measure chemical concentration.

Many people might answer "with the human eye", but this is actually not comprehensive. The human eye cannot accurately distinguish the colors of similar objects. Furthermore, everyone's perception of color varies. Therefore, people have developed color measurement tools based on the CIE color system.

Currently, there are two main types of commonly used colorimeters, as follows:

Colorimeter - It is an ideal choice for quality control (QC) on production lines, used to detect color differences.

Spectrophotometer - It is suitable for the development of color characteristics and color analysis in laboratories.

Colorimetry is a method that applies color intensity to ascertain the chemical concentrations. It is founded on Beer-Lambert Law, whereby the absorbance at a given wavelength is proportional to the concentration. It is popular in environmental and biochemical testing.

Related Portable Spectrophotometers You May Also Like

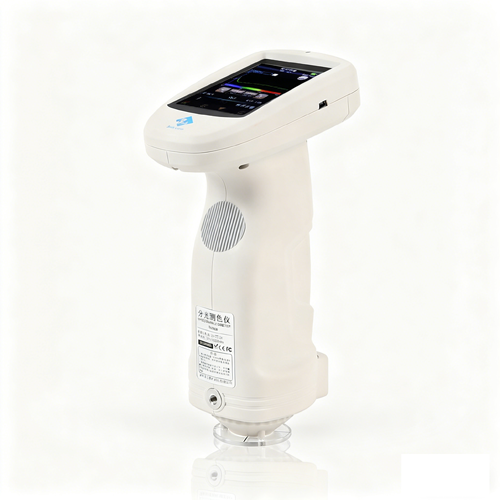

TS7600 Handheld Grating Spectrophotometer
