NHG60 60°gloss meter

High Precision 60° Measurement for Professional Finishes

The full-touch advanced NHG60 precision gloss meter is a 60° high-precision gloss meter independently developed by 3nh. It is a gloss instrument with completely independent intellectual property rights. The research and development of this instrument is fully carried out in accordance with the international standard ISO 2813.


Key Highlights

  • Large Touch Screen Operation, Fully Automatic Calibration

  • 60° angle for semi gloss

  • Detection spot: 9 * 15mm Display

  • Display 5 sets of measurement data

  • Conforming to standards ASTM D523, ASTM D2457, GB/T 1381, GB/T 7706, and GB/T 8807.

  • Scope of application: Glossiness testing of plastic, hardware, and stone profiles.

This NHG60 60°gloss meter Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

NHG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



NHG60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.



Features:

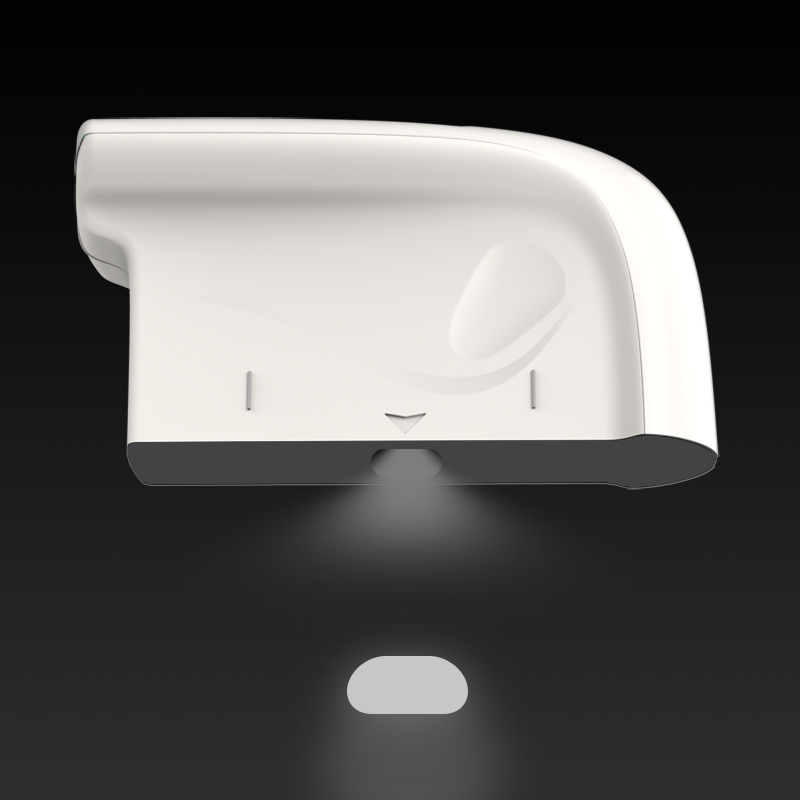

  1. 60° angle for semi gloss

    1740722173551677

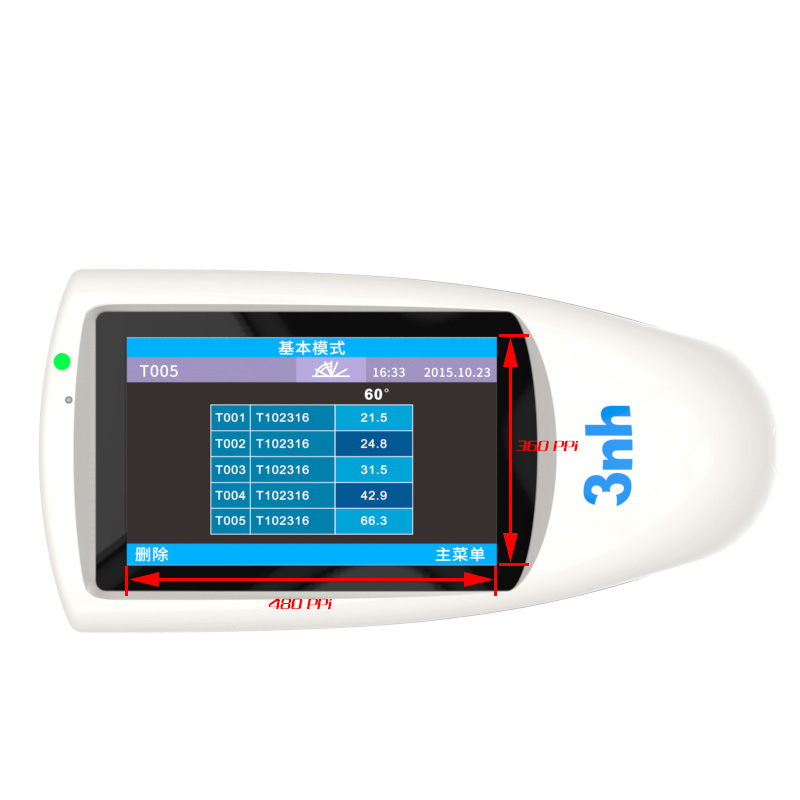

2. Display 5 sets of measurement data, good for comparison

5 sets of gloss measurement data

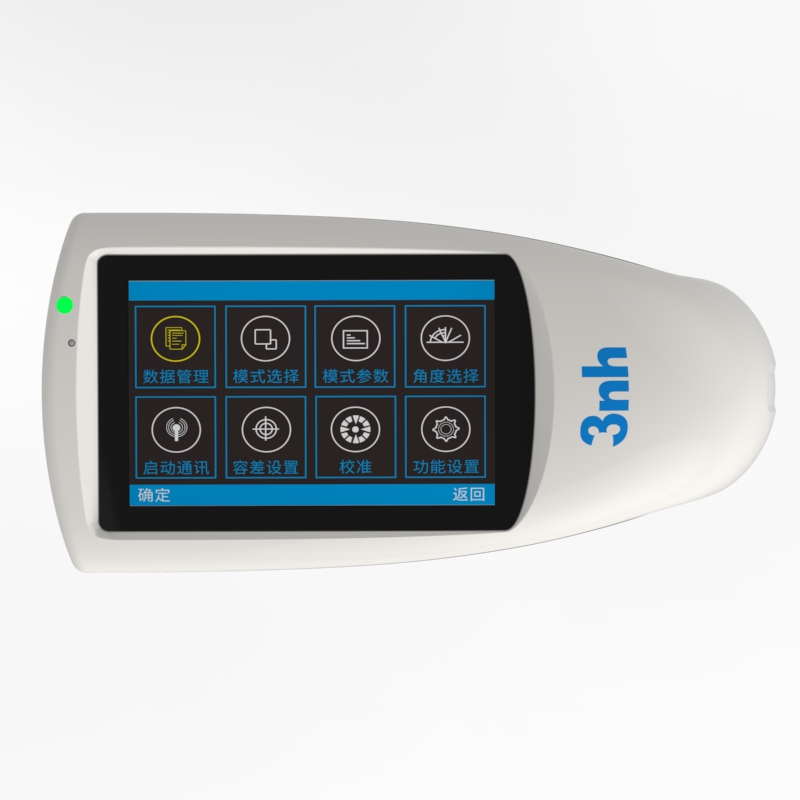

3. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

1740722178976475

4. Continuous mode to check uniformity over large areas

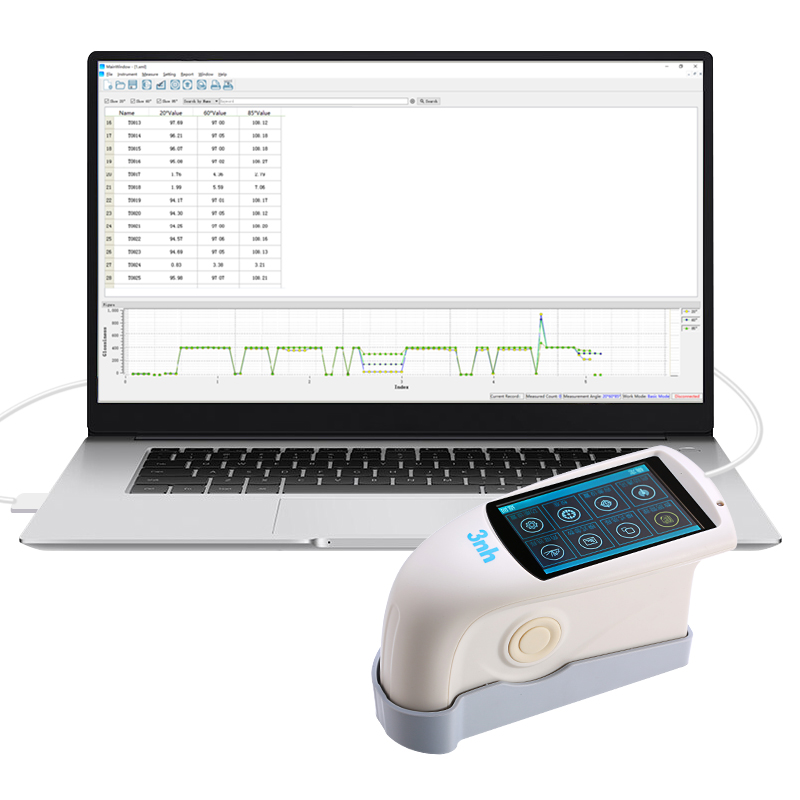

5. Connect to PC, more extend functions

1740722183678889

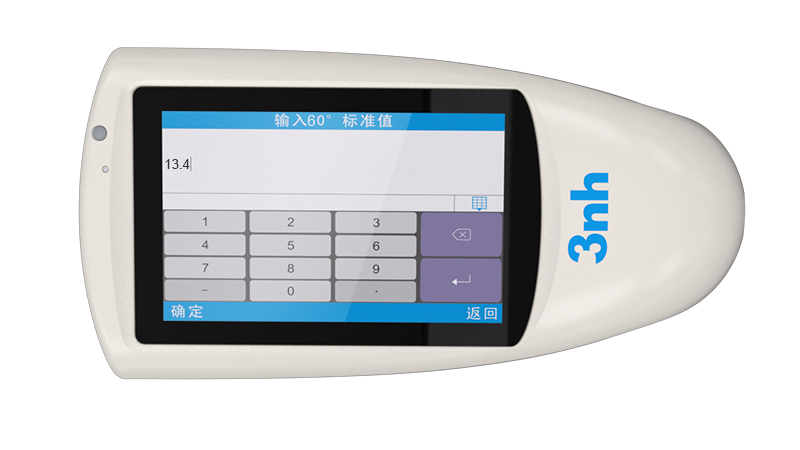

6. Input gloss value manually

1740722194603592

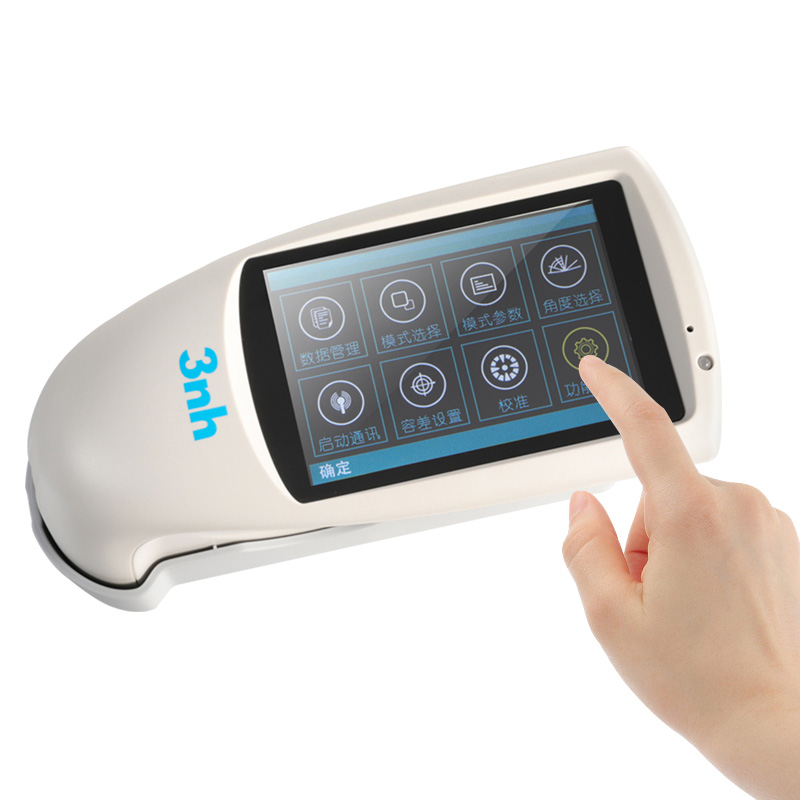

7. Large touch screen operation, easy to use

hng60_touch_screen

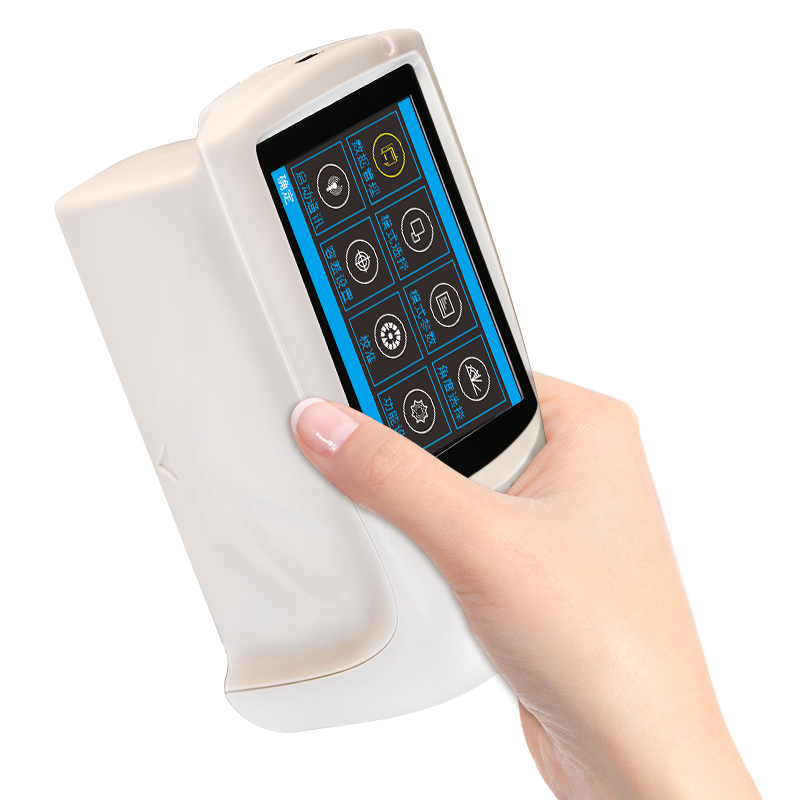

8. Beauty appearance, good man-machine communication interface

1740722153521654

9. Powerful functions to meet many different requirements

1740722162925142

10. Large storage to save over 5000 data
11. Built-in lithium ion rechargeable battery.



NHG60 gloss meter Applicable Industries

hng60 applicable industries automobile stone material plastic metal paints printing

Specifications:



NHG60 60° Precise Gloss Meter
ModelNHG60
Measure Angle60°
Comply with standard ISO 2813、GB/T 9754、ASTM D 523、ASTM D 2457
Measuring Area (mm)9X15
Measurement Range0~1000GU
Division Value0.1GU
Measurement Range                       Repeatability
Reproducibility
0-10GU            10-100GU      100-1000GU
± 0.1GU           ± 0.2GU           ± 0.2%GU
± 0.2GU           ± 0.5GU           ± 0.5%GU
Measurement StandardConform with JJG696 first class gloss meter working requirement
Chromaticity CorrespondingCorresponding with CIE 1931(2°) under CIE C light source
Errors±1.2 , ± 1.2%
Measuring Time0.5s
DimensionL*W*H : 160mm*75mm*90mm
Weight350g
LanguageChinese/English
Battery3.7V,3200mAh Li-ion Battery, >10000 times(within 8 hours)
Viewing ScreenTFT 3.5 inch, capacitive touch screen
InterfaceUSB/RS-232
Data SaveBasic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000
SoftwareGQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity<85% relative humidity, no condensation
Standard AccessoriesPower Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional AccessoriesMiniature Printer
NoteThe specifications are subject to change without notice.



12 Quality Inspection Processes

With 12 rigorous quality inspection processes in place, we ensure a high yield rate of up to 98% for batch processed precision parts.

DFM Analysis
DFM Analysis
Dimensional Tolerance
Dimensional Tolerance
Material Testing
Material Testing
CNC Machining
CNC Machining
FQC Detection
FQC Detection
SPC / CPK
SPC / CPK
Problem Found
Problem Found
Problem Solving
Problem Solving
OQC Detection
OQC Detection
Surface Treatment
Surface Treatment
Full Inspection
Package
Package

Our Valued Clients

FAQs About  Gloss meter

Powder paint gloss levels are classified as:

● Flat: 0–10 GU

● Satin: 11–40 GU

● Semi-gloss: 41–70 GU

● Gloss: 71–85 GU

● High Gloss: 86+ GU


These are measured at a 60° angle for standardization.


An 80 gloss surface will reflect less light as compared to a 100 gloss surface. Both are said to be high gloss, although 100 GU (or higher) reflects almost as much as a mirror. The distinction can be slight in graphic terms, but major in specific uses.


Depending on the scale of the manufacturer, its matte, low-sheen finish can be called gloss level 3. Overall, gloss levels in certain standards go between 1 (flat) to 7 (high gloss). Level 3 is considered low-gloss or satin-like.


The gloss scale is normally measured against the scale of 0 to 100 gloss units (GU). The scale is zero at matte and 100 at a mirror. Other very smooth surfaces can be over 100 GU at lower angles, such as 20°.


Gloss is the general reflectivity of a surface, which encompasses a variety of degrees. One particular type of finish is high gloss, which has the maximum shine and reflectance. It increases the richness but emphasizes flaws as compared to satin or matte.
