Multi-angle Spectrophotometer Instruments

3nh Multi-angle spectrophotometer is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. Lightweight, Durable, Accurate—Your On-the-Go Color Expert

Redefine Color Measurement for Complex Surfaces

The Ultimate Tool for True Color Analysis

The 3nh Multiangle Spectrophotometer features up to 12 measurement angles, with a maximum repeatability of ΔEab < 0.04 and color repeatability of ΔEab < 0.02. It is primarily designed for measuring the sparkle, flop, and granularity effects on object surfaces,It can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products.

It can not only measure multi-angle color difference, but also measure and characterize special finishes through multiple measuring angles. Even in the curved surface, it also has high measuring accuracy and stability.

From Car Paint to Cosmetic Pearls: Master Every Shade with Multi-Angle Spectrophotometry

Contact Our Specialists

Types of 3NH Multi-angle spectrophotometer Products

MS3012 Multi-angle spectrophotometer

8 Angle Color Spectrophotometer MS3008

MS3006 Multi-angle spectrophotometer

New KS Series Multi-angle Spectrophotometer

Multi-angle spectrophotometer MS3005

Multi-angle spectrophotometer MS3003

Professional Multi-Angle Spectrophotometer

The Future of Special-Effect Color Measurement: Multi-Angle Spectrophotometers Lead the Way

4th Generation Grating Spectrophotometer

A powerful and portable instrument for color measurement, management, transmission, and report printing.




Masters Color at Every Angle - Multi-angle measurement

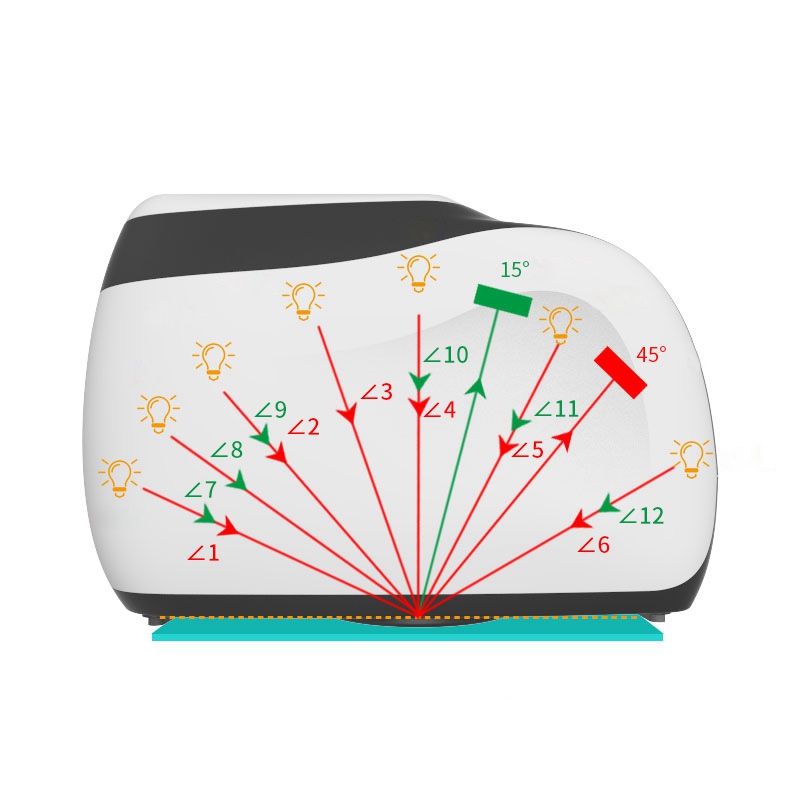

Adopt 7 illumination sources, 2 receivers to measure 12 measurement angles at the same time

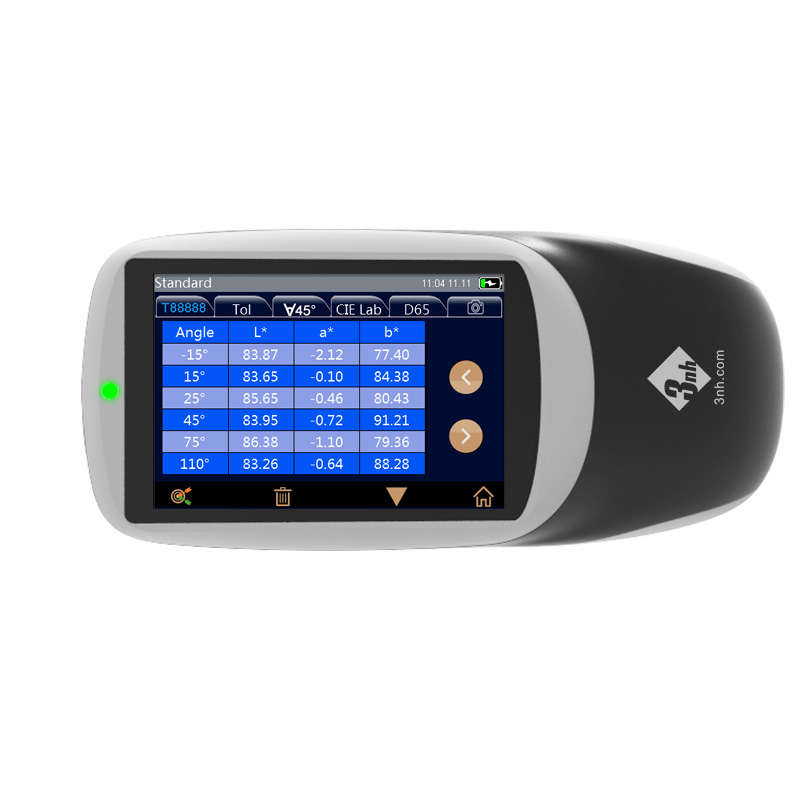

all Angle measurement results display large screen

More intuitive display

Touch screen can display all Angle measurement results, more intuitive view of the comprehensive data.

Threenh Multi-Angle Spectro Colorimeter Advantages

  • High - end Hardware Configuration: Dual - array image sensors; Bluetooth transmission; Concave grating for light dispersion.

  • Stable Measurement: 400 - 700nm blue - enhanced LED, with the standard deviation controlled within 0.08%.

  • Color Transfer: Measures the sample's reflection spectrum, providing accurate Lab data, applicable for color matching and color transfer.

  • Measurement Accuracy: Temperature monitoring and compensation. With a built - in temperature sensor, it monitors and compensates for the test environment to ensure accurate measurement results.

  • User-Centric Design: Its compact, lightweight design (1.2kg) also makes it ideal for both lab-based testing and on-site inspections (e.g., factory production lines, supplier audits).

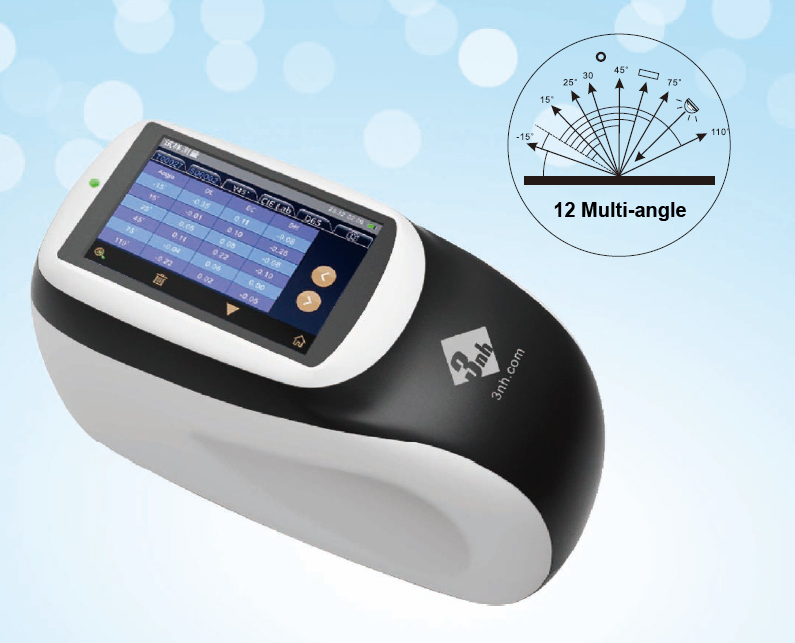

12 multi-angle color measurement 3nh


Threenh Multi-Angle Color & Effect Measurement Spectrophotometer Widely Application

Traditional colorimeters often miss subtle color shifts visible at different viewing angles, leading to inconsistent products, costly reworks, and disappointed customers. Our Multi-Angle Spectrophotometer solves this challenge by capturing color data from multiple angles, ensuring your products look perfect, no matter how they’re viewed.

Multi-Angle spectrophotometer for metallic, pearlescent & Iridescent materials, It provides accurate and consistent color measurement for metallic, pearlescent, and other complex special - effect color products. From automotive paints to cosmetics—this spectrophotometer instruments masters color at every angle.

  • Solid surfaces (metals, plastics, ceramics)

  • Coatings & inks (automotive, industrial, packaging)

  • Textiles & fabrics (apparel, home textiles)

  • Cosmetics (lipsticks, nail polishes, powders)


Automotive Surfaces


Automotive Interiors


Plastic Products


Printing and Dyeing Products

Discover the Multi-Angle Colorimeter for Automotive Color Matching&Measurement

Master Automotive Color Matching - Multi-angle Spectrophotometric Technology Measures the Texture, Gloss, and Sparkle of Automobiles. These devices are important in OEM manufacturing and body shop refinishing as well as quality control processes where precision and repeatability aspects are vital.

Request for quotation Spectrophotometers with Multi-Angle Measurements

Would you like a quote or additional technical details regarding our  Spectrophotometers with multi-angular measurements ? To do so, you will find our quick contact form below. We thank you for detailing your request in the "comments" field so that we can best respond to you. All our technical and sales teams are at your disposal to respond to you as quickly as possible

Connect With Our Color Expert!

Our Valued Clients

FAQs About  Multi-angle spectrophotometer

We provide professional training to customers along with user manuals for the proper operation and maintenance of haze meters. If you have any problems during use, you can contact our experts who will quickly help you solve the problem


Yes, we offer free samples for test, you are welcome to order samples to experience our excellent quality and service.

Threenh colorimters are used across various industries to measure, analyze, and control color accuracy and consistency:

Food and Beverages: Monitor color quality in food products to meet industry standards.

Plastics and Polymers: Ensure color uniformity in plastic components (e.g., casings, buttons, panels) during manufacturing.

Chemicals and Pharmaceuticals,Cosmetics: Industry-specific accessories to attain the highest safety protocols, Ensure uniform color in pharmaceutical products for quality and brand recognition;Develop and match colors for cosmetics (e.g., lipsticks, creams, powders) and ensure batch consistency.

Textiles and Apparel: Monitor color consistency in fabrics during dyeing, printing, or finishing processes; ensure color consistency in fabrics and garments.

Building materials, Paints, and Coatings: Detect color deviations in coatings on metal, wood, or plastic surfaces (e.g., automotive paints, furniture finishes). Maintain color accuracy in building materials, paints, and coatings.

Printing and Packaging: Validate color accuracy in printed materials (e.g., brochures, labels, packaging) against design proofs, maintain consistency across different printing technologies.

By addressing color-related quality control challenges, 3NH colorimeters help industries maintain brand consistency, meet regulatory standards, and enhance customer satisfaction.


Measurement Accuracy (dE/ΔE): The smaller the value, the higher the match between the color measured by the colorimeter instrument and human visual perception. Generally, dE < 1.0 is regarded as the industrial passing line, while dE < 0.5 falls into the high-precision level.

Measurement Structure: D/8 (integrating sphere structure) is the universal standard, which includes two modes: SCI (Specular Component Included, with specular reflection light) and SCE (Specular Component Excluded, excluding specular reflection light). 45/0 (ring illumination) simulates the human eye's viewing angle and is more suitable for judging reflective materials.

Repeatability: It refers to the difference in color results when measuring the same point multiple times. The equipment can achieve ΔE < 0.08, ensuring highly reliable measurement results.

Illumination Source and Viewing Angle: It is recommended to choose the combination of CIE standard light source D65 (simulating daylight) and a 10° viewing angle.

Application Scenario Requirements: It is necessary to clarify the purchase purpose (quality inspection? R&D? material evaluation?) and the usage environment (laboratory, workshop or field work?).


a. It’s needed to perform manual calibration for NH300 when first starting.

b. In the subsequent starting, no need to perform manual calibration.

c. Suggestion: it’s best to perform manual calibration once a week or when NH300 measured data is not accurate.

You can choose a colorimters depending on the substrate you are measuring the color of, whether it is opaque, translucent or transparent. In short, you can consider the following factors for choosing the right 3NH colorimeter for your needs: Sample Opacity, Physical Form, Optical Properties needed, Measurement Methods required, Scales and Indices needed, Instrument Standards Conformance (ASTM/ISO/Other), Instrument Geometry, Instrument Performance, Location (laboratory, portability, in-process) and Sample Handling requirements.

By systematically addressing these factors, you can select a colorimeter that optimizes accuracy, efficiency, and value for your specific application.Learn more from our ultimate guide on colorimeter selection. If unsure, consult the 3NH manufacturer for personalized recommendations based on your sample and workflow.


Further Multi-angle spectrophotometer Applications and Solutions

Cover Materials Color Measurement Solutions
Measure Color Differences of Foods
Cosmetic Finished Product Color Detection
Industrial Paint and Coating Color Detection
