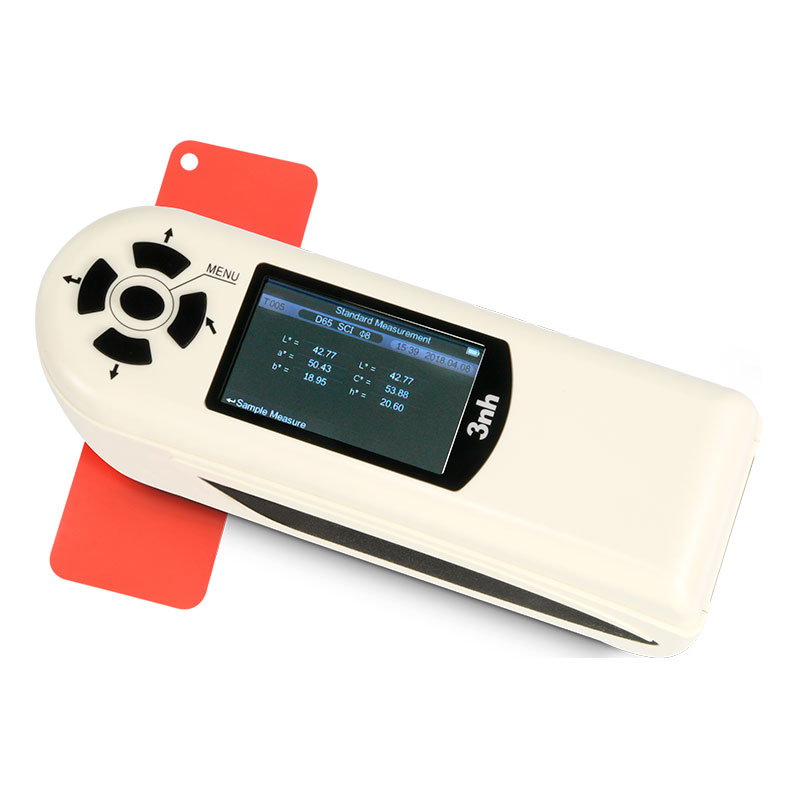

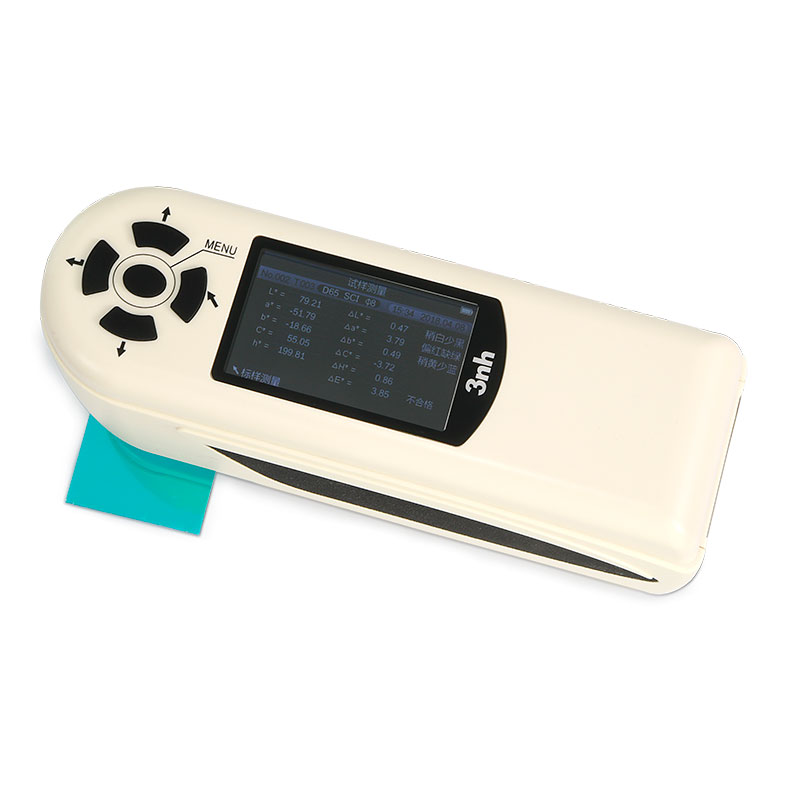

NR200 Precision Colorimeter

Colorimeter NR 200 High-Quality Colorimeter High-end brands of domestic colorimeter NR200 is another mainstream brand colorimeter introduced by 3nh which has synthesized the advantages of ten more traditional imported colorimeters and has e

PRODUCT DETAILS

High-end brands of domestic colorimeter



NR200 is another mainstream brand colorimeter introduced by 3nh which has synthesized the advantages of ten more traditional imported colorimeters and has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!



1. Leading Humanity Design and Convenient Operation

One-touch access to measurement interface

Structure design in line with ergonomics

East-to-use operating interface



2. Stable Measurement Performance

The repeatability △E is 0.08.

Portable structure design which is more conductive to keeping the instrument stable when using.



3. Convenient and Fast Locating

Illumination locating is a fast, simple and convenient locating which created by 3nh.



4. PC Software—Realize More Function Expansion

3nh has the intellectual property of PC software. The corresponding software serial number and password protection are configured in 3nh colorimeter.

Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.



5. Advanced Power Management Design

3nh is the first enterprise using high capacity Li-ion battery in colorimeter.

3nh Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long time measurement.



NR200 Specifications:


Illuminating/Viewing Geometry 8/d
Measuring Aperture Φ8mm
Detector Silicon photoelectric diode
Color Space CIEL*a*b*C*h* CIEL*a*b*
Color Difference Formula △E*ab △L*a*b △E*C*h
Light Source D65
Light Source Device LED blue light excitation
Errors Between Each Equipment ≤0.50ΔE*ab
Storage 100pcs standards 20000pcs samples
Repeatability Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate
Weight 500g
Dimension 205×70×100 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 3 years, more than 1 million measurements
Charging Time 2 hours (First time 8 hours--100% electricity)
Measurement Times Before Recharging More than 3000 times
Operating Temperature/Humidity Range -10~40℃, relative humidity 0~85% with no condensation
Data Interface USB

Optional Accessory Miniature thermal printer, Powder Test Box
NR200 Precision Colorimeter
